The floating water quality monitoring station adopts a modular design, which is easy to install and maintain, and can be used for water quality monitoring in rivers, lakes,s and other waters, providing data support for water environmental protection and pollution control.

1. Product Introduction

1.Water Quality Buoy Monitoring StationSFAAn unmanned data collection system that integrates data collection, storage, transmission, and management. It is used in hydrological automatic monitoring systems for the purpose of industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water supply dispatch, and power station reservoir water management; The powerful SCADA software can remotely observe real-time hydrological and meteorological information, with database, report, download and other functions. Users can also use this function-rich meteorological software to further process and analyze the recorded data.

2. The SFA03 type floating buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH), data logger, communication system, power supply system, overall support frame, and water quality monitoring platform. At the same time, it can be extended to dissolved oxygen, ammonia nitrogen, turbidity, COD, and other multiple water quality elements. The data logger has data acquisition, real-time clock, data定時(shí) storage, parameter setting, and standard 2G/4G (GPRS) communication functions.

2. Product features

1. Easy deployment: High integration of various types of probes, easy installation; free cloud platform service is provided, and the system is quickly launched;

2. Easy maintenance: The equipment can operate independently after installation, without the need for manual supervision, and can also be monitored remotely to ensure the normal operation of the equipment;

3. Easy to expand: all sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand the monitoring parameters;

4. Low power consumption: The device can achieve low power consumption state, long-term operation, and increase the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real-time, enhancing the timeliness of environmental data feedback.

Three, Technical Parameters

1. Subject parameters

2.Main parameters of the optional sensor

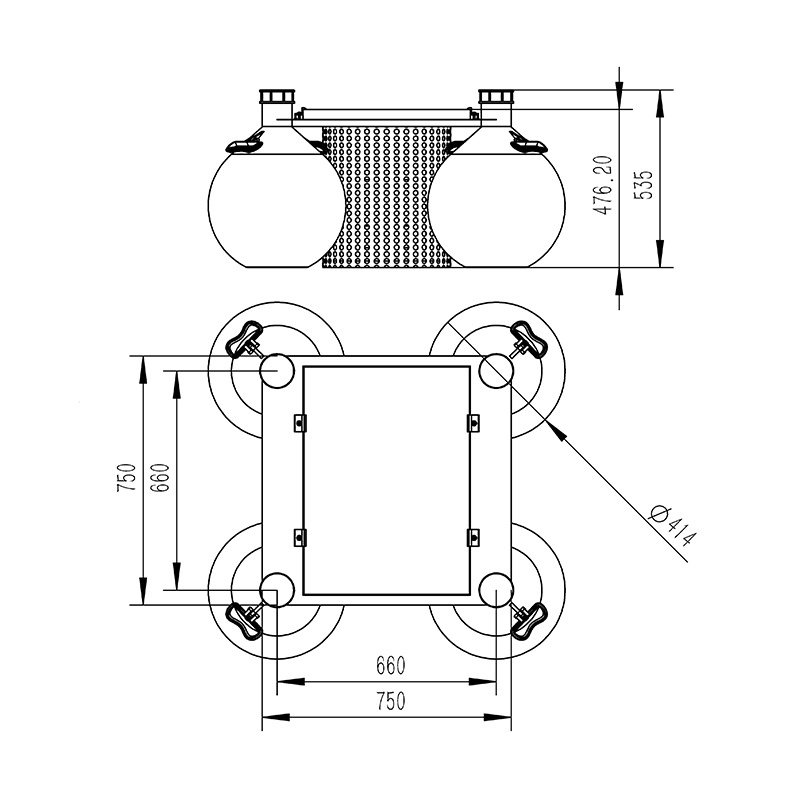

IV. Product Size Chart

5. Equipment installation requirements

1. Stay away from high-power radio transmitting sources

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. As close as possible to the data transmission network

4. Stay away from strong electromagnetic interference

Six, Introduction to the Cloud Platform

1. CS architecture software platform, supports direct observation of mobile phones, PC browsers. No need to install additional software.

2. Support multiple accounts, multiple devices login

3. Support for real-time data visualization and historical data visualization dashboards

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, load balancing.

5. Support for SMS alarm and threshold setting

6. Support for map display, view device information.

7. Support for data curve analysis

8. Support for exporting data in spreadsheet format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support for data post-processing functions

11. Support for external JavaScript scripts
